TL;DR
Tactile panel sizes for transit platforms depend on your jurisdiction. ADA and California require a 24-inch (610 mm) depth from the boarding edge along the full platform length. CSA B651 in Canada calls for 600 to 650 mm depth across the full width of the hazard. The UK requires 400 mm depth with a minimum 500 mm setback from the edge. Standard North American panels come in sizes from 12"×12" up to 36"×60", with the 24-inch first dimension matching the required depth under most codes.
This reference is for architects, transit planners, contractors, and facility managers who need to specify or purchase tactile warning panels for transit platform edges. It covers the required dimensions under five major standards (ADA, CSA B651, California Title 24, UK DfT, and ISO 23599), lists common panel sizes on the market, and explains how to select the right size for your project.
Browse tactile indicator panels to see available sizes and pricing.

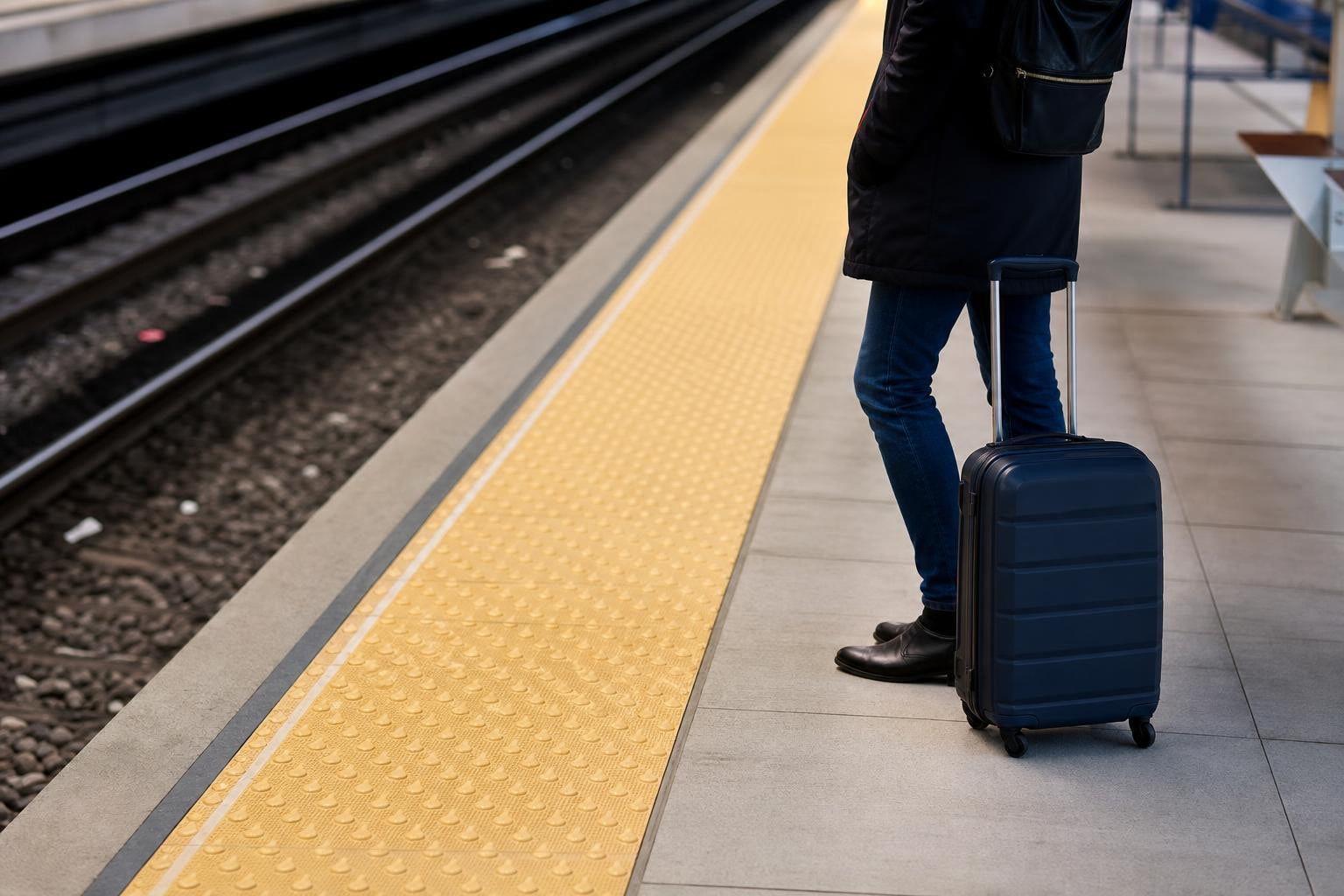

What Are Tactile Panels for Transit Platforms?
Tactile panels for transit platforms are truncated dome warning surfaces installed at boarding edges to alert pedestrians, especially those with visual impairments, of a dangerous drop-off. Between 9 and 15 percent of people who fall onto railway tracks are blind or partially sighted, according to UK rail safety research. That statistic alone explains why every major accessibility standard in the world requires these surfaces at platform edges.
There are two types of tactile surface relevant to transit stations:
Attention indicators use truncated domes arranged in a grid pattern. These are the panels installed at the platform boarding edge to warn of the drop-off hazard.
Directional indicators use elongated bars (flat-topped ridges) to guide pedestrians along a path, such as toward a boarding door or transit stop entrance. California and CSA B651 both address directional indicators at transit locations, though the requirements differ. For more on the differences, see this guide on directional bar tiles.
The rest of this article focuses on attention indicator panels (truncated domes), since those are what building codes mandate at the platform edge itself.
The Slip and Fall Problem at Transit Platforms
Transit platforms present a specific and serious hazard. The platform edge is an unprotected vertical drop, sometimes four feet or more to the track bed. Pedestrians approach the edge in crowds, often distracted, sometimes in rain or snow, and always on a surface that may be wet, icy, or polished smooth by years of foot traffic.
A federal transit research report identified falling from a high platform onto the track bed as a major safety concern for visually impaired travelers on rail rapid transit. A 24-inch warning strip at platform edges has been shown to reduce falls for all platform users, not just those with visual impairments. That finding is the basis for the dimensional requirements in every standard discussed below.
The tactile dome surface underfoot is a physical signal: stop, the edge is near. Without it, a visually impaired traveler has no reliable way to detect the platform edge before stepping off.
Required Depth at Platform Edges by Standard
The recommended tactile panel sizes for transit platforms vary by jurisdiction. The single most important dimension is the depth of coverage measured from the boarding edge back toward the platform interior. Here are the requirements across the five standards you are most likely to encounter.
ADA (U.S. Federal): 24 Inches, Full Length
Under ADA §810.5.2, detectable warning surfaces at transportation platform boarding edges must extend 24 inches (610 mm) from the boarding edge. The coverage must run the full length of the public use areas of the platform.
ADA §705 further clarifies that platform boarding edges not protected by platform screens or guards must have detectable warnings along their entire public-use length. There is no setback requirement in the ADA. The tactile surface begins at the edge.
California Title 24 (CBC 11B): 24 Inches or 36 Inches
California follows the ADA for platform edges: 24 inches (610 mm) wide, extending the full length of the public use area. But California goes further in two ways.
At bus stop boarding and alighting areas, the detectable warning must extend the full width of the boarding zone and be 36 inches (914 mm) minimum in depth. At track crossings, the requirement is also 36 inches in the direction of pedestrian travel, extending the full width of the circulation path.
California also requires a directional texture at transit boarding platforms. The width of the directional texture must equal the width of the transit vehicle’s door opening, and the depth must be at least 36 inches.
This 24-inch vs. 36-inch distinction trips up many specifiers. Platform edges get 24 inches. Bus stops and track crossings get 36 inches. Getting these mixed up is a common plan check rejection.
CSA B651 (Canada): 600 to 650 mm
Under CSA B651, a tactile attention indicator surface used to indicate a hazard must be installed along the full width of the hazard to a depth between 600 and 650 mm, with one side against the edge of the hazard.
Transit platforms are explicitly listed as a required location where the change in elevation exceeds 250 mm or the slope is steeper than 1:3. CSA B651 was most recently updated and specifiers should confirm they are referencing the latest edition, as dimensions were revised based on new anthropometric research.
For Canadian projects, the 600 to 650 mm depth requirement aligns closely with the ADA 24-inch (610 mm) standard. Panels designed to the ADA 24-inch depth will typically satisfy the CSA requirement as well, but you should verify the product dimensions against the 600 mm minimum.
CSA B651 also recommends directional indicators at transit stops, with a minimum length of 600 mm extending the width of the pedestrian route.
For a deeper look at Canadian compliance, read the tactile indicators compliance guide for Canada.
UK DfT Guidance: 400 mm Depth With Setback
The UK Department for Transport guidance requires a tactile surface installed to a depth of 400 mm along the entire length of the platform. But unlike North American standards, the UK specifies a setback: the tactile surface should be laid immediately behind the platform edge coping stone, typically 600 to 700 mm back from the platform edge, and never less than 500 mm.
The reasoning is that pedestrians need enough stopping distance after detecting the surface underfoot. This setback rule is absent from ADA and CSA standards, where the tactile strip starts right at the edge. If you are working on an international transit project, this is a critical difference.
UK platform edge paving units are 400×400 mm, with rows of lozenge-shaped rounded raised ridges 6 mm high, which differs from the truncated dome profile used in North America.
ISO 23599:2019 (International)
ISO 23599 is the international framework for tactile walking surface indicators. It specifies the size, shape, and texture of indicators and provides recommendations for installation in settings including transit stations. However, it defers to national codes for the actual depth and coverage requirements.
Where ISO 23599 matters most is in its luminance contrast requirements: the contrast between the tactile surface and surrounding paving must be greater than 30% (using the Michelson Contrast formula) for uniform-color paving modules, and greater than 50% where discrete elements form the tactile surface.
Jurisdiction Comparison Table
| Standard | Required Depth at Platform Edge | Coverage Length | Key Dome Specs |
|---|---|---|---|
| ADA §810.5.2 / §705 | 24 in (610 mm) | Full length of public use area | Base ø 0.9–1.4 in; height 0.2 in |
| California Title 24 (11B-705) | 24 in at platforms; 36 in at bus stops/track crossings | Full length or full width | Same as ADA, plus directional texture |
| CSA B651 (Canada) | 600–650 mm | Full width of hazard | Height 4–5 mm; top ø 12–15 mm; base ø 10 ±1 mm greater |
| UK DfT | 400 mm, set back ≥ 500 mm from edge | Full length of platform | Ridge height 6 mm; 66.5 mm centre-to-centre |
| ISO 23599:2019 | Per national code | Per national code | Height 4–5 mm; ≥ 30% luminance contrast |
Common Tactile Panel Sizes Available
Now that you know the required depth, here are the standard panel sizes that satisfy those requirements. The recommended tactile panel sizes for transit platforms are driven by that non-negotiable depth dimension.
Surface-Applied Panels (North American Market)
Standard sizes include 12"×12", 24"×24", 24"×36", 24"×48", 24"×60", 36"×48", and 36"×60".
The 24-inch first dimension is not arbitrary. It matches the ADA and CSA depth requirement in a single panel row. The second dimension (24", 36", 48", or 60") determines how many linear feet of platform edge you cover per panel. Longer panels mean fewer joints but more weight and harder handling on site.
The 36-inch-deep panels serve California bus stop and track crossing requirements where 36 inches of coverage is mandatory.
Cast-in-Place Panels
Available in 24"×24", 24"×36", 24"×48", and 24"×60" nominal sizes. These are embedded into wet concrete during new construction. For retrofit projects, surface-applied panels are the standard choice. For cast-in-place options, see heritage brick cast-in-place panels.
Cast Iron Plates
Cast iron tactile plates come in 12"×24", 24"×24", and 24"×30" sizes. These are heavy-duty options for high-traffic transit environments where abrasion resistance matters most. See cast iron plates for specifications.
Flexible Polyurethane Tiles
Flexible PU tiles (300×300 mm) in yellow or black are available for temporary installations or small-area compliance needs.
UK Market Sizes
UK panels come in 400×400 mm or 1220×400 mm formats, matching the 400 mm depth requirement.
Radius Panels for Curved Platforms
Most competitors and guides ignore this, but many transit platforms have curved edges. Standard rectangular panels won’t follow the curve properly, which leaves gaps or requires excessive cutting. Radius tactile panels are designed specifically for these situations.
Truncated Dome Dimensions by Standard
The panel size gets you the right coverage area. But inspectors also check the individual dome dimensions. Getting the panel size right while using non-compliant domes will still fail inspection.
ADA Dome Specifications
Truncated domes must have a base diameter of 0.9 to 1.4 inches, a height of 0.2 inches, and a top diameter of 50 to 65 percent of the base diameter, per ADA §705.
CSA B651 Dome Specifications
Canadian domes must be 4 to 5 mm tall, with a top diameter of 12 to 15 mm and a base diameter 10 ±1 mm greater than the top diameter. Domes are arranged in a square grid pattern.
UK Offset Blister Specifications
UK tactile surfaces use flat-topped domes (called “blisters”) spaced 66.5 mm centre-to-centre. Dome height is approximately 5 mm. The profile and spacing differ from North American truncated domes, so panels designed for one market do not comply with the other.
How to Choose the Right Panel Size for Your Transit Platform
Selecting the recommended tactile panel sizes for transit platforms comes down to five decisions.
1. Identify Your Jurisdiction
This is the first and most consequential step. The applicable code dictates the required depth, and there is no room for approximation. ADA projects need 24 inches. California bus stops need 36 inches. Canadian projects under CSA B651 need 600 to 650 mm. UK projects need 400 mm with a setback. Many transit projects involve government and institutional buyers, so the governing code is usually specified in the project documents.
2. Measure the Platform Edge
Measure the total length of the public use area. Divide by your chosen panel length to get the number of panels needed. Add overage for cuts, but remember the critical rule: never cut a panel to less than 12 inches. Tiles under 12 inches create compliance risk because the dome pattern becomes too truncated to be reliably detectable underfoot.
3. Choose Surface-Applied vs. Cast-in-Place
For new construction where concrete is being poured, cast-in-place panels offer a flush finish. For retrofits on existing platforms, surface-applied panels are the practical choice. They fasten mechanically with hardware like stainless steel saddle clamp assemblies or adhesive, and they can be installed without demolishing the existing surface.
4. Weigh Panel Length Against Handling
Longer panels (24"×60") cover more linear feet per unit, reducing the total number of joints. Fewer joints means less chance of dome misalignment between adjacent panels. But longer panels are heavier, harder to cut, and more difficult to position accurately. For most transit platform projects, 24"×48" offers a good balance between coverage efficiency and workability.
5. Verify Color Contrast
Color contrast failures are one of the most common inspection rejections. Gray domes on gray concrete will not pass. ADA requires a visual contrast; California and CSA standards are more specific. ISO 23599 requires at least 30% luminance contrast on uniform-color surfaces and 50% on discrete-element surfaces. Yellow panels on gray or dark concrete are the safest choice for universal compliance.
For a complete procurement workflow, the TWSI procurement checklist covers everything from code verification to delivery inspection.
Attention Indicators vs. Directional Indicators at Transit Stations
Transit stations often require both types of tactile surface, and confusing them is a mistake.
Attention indicators (truncated dome panels) go at the platform boarding edge. Their job is to say “stop, hazard ahead.”
Directional indicators (elongated bar tiles) guide pedestrians along a route, such as from a station entrance to the boarding door. Their bars are oriented in the direction of travel.
California explicitly requires both at transit boarding platforms. The directional texture must equal the width of the transit vehicle’s door opening and extend at least 36 inches deep.
CSA B651 recommends directional indicators at transit stops, specifying a minimum length of 600 mm extending the width of the pedestrian route.
Even where directional indicators are not strictly mandated, Canadian transit agencies are moving toward full implementation. TransLink, for example, plans to install tactile walking surface indicators at every bus stop on property it owns or leases.
Installation Rules That Affect Panel Size Selection
Choosing the right recommended tactile panel sizes for transit platforms is only half the job. Installation details determine whether those panels actually pass inspection.
Successive tiles must have a uniform joint of at least 1/8 inch between them. These joints allow for thermal expansion and contraction. The dome grid must align across joints, so panels from the same manufacturer and production run should be used throughout a project.
Only uncut tiles should be used wherever possible. When cuts are unavoidable, a tile should never be less than 12 inches long. This is a frequently cited plan-check item.
Curing for adhesive-mounted surface-applied panels takes 24 to 48 hours after positioning. During that period the platform area must remain closed to foot traffic, which is a significant logistics consideration for operational transit stations.
Limitations to Keep in Mind
Tactile panels reduce the risk of platform falls, but they do not eliminate all risk. Surfaces still require regular cleaning and maintenance. Ice, snow, debris, and water accumulation must still be managed, especially in Canadian winter conditions.
Code and accessibility claims should always be verified against the specific codes governing your project location. Standards are updated periodically. CSA B651 has been revised with updated dimensions based on new research, and specifiers should confirm they are working from the current edition. Products support compliance when correctly specified and installed per the applicable code, but no product guarantees compliance on its own.
Shop Tactile Panels for Your Transit Project
Safety Step Canada carries surface-applied, cast-in-place, cast iron, and flexible tactile panels in the sizes discussed throughout this guide, along with directional bar tiles and installation hardware.
View all tactile indicator products
Need help selecting the right size and type for your transit platform project? Contact Safety Step Canada for project-specific guidance.
Frequently Asked Questions
What is the standard tactile panel depth for transit platforms under ADA?
ADA §810.5.2 requires 24 inches (610 mm) of detectable warning surface measured from the boarding edge, running the full length of the public use area. This is why most North American tactile panels have a 24-inch first dimension.
Does Canada use the same panel sizes as the United States?
The CSA B651 requirement of 600 to 650 mm depth is very close to the ADA 24-inch (610 mm) standard. Panels designed for the ADA 24-inch depth will generally work for Canadian projects, but specifiers should verify that the actual product dimension meets the 600 mm minimum.
When do I need 36-inch panels instead of 24-inch panels?
Under California Title 24, bus stop boarding areas and track crossings require 36 inches (914 mm) of tactile coverage, compared to 24 inches at standard platform edges. If your project is in California, check whether it falls under the 24-inch or 36-inch requirement before ordering.
Can I cut tactile panels to fit my platform?
Yes, but with a critical constraint: a cut panel should never be less than 12 inches long. Panels shorter than that compromise the dome pattern and create compliance risk. Use only full, uncut panels wherever possible.
What is the difference between the UK and North American requirements?
The UK requires a shallower depth (400 mm vs. 610 mm) but mandates a minimum 500 mm setback from the platform edge. North American standards place the tactile surface right at the edge with no setback. The dome profiles also differ, so panels designed for one market will not comply with the other.
Do curved transit platforms need special panels?
Yes. Curved platform edges require radius panels that follow the curve without gaps. Standard rectangular panels cannot conform to a curved edge properly and will leave non-compliant gaps or require excessive cutting.
How do I handle color contrast requirements?
Most standards require a visible contrast between the tactile surface and the surrounding pavement. ISO 23599 specifies at least 30% luminance contrast for integrated panels and 50% for discrete elements. Yellow panels on gray or dark concrete are the most reliable way to meet contrast requirements across all jurisdictions.
How long does installation take for surface-applied panels?
Mechanical fastening is relatively quick, but adhesive-mounted panels require 24 to 48 hours of curing time during which the area must stay closed to foot traffic. Plan accordingly, especially at operational transit stations where closures affect service.
